QSC E118SW
The E118sw is a high-performance direct radiation subwoofer with a single, 800W, 18-inch, aluminum frame woofer. It’s designed to produce crushing low-end for live performance with kick-drum and bass in the PA or for high-level, high-energy dance music. A threaded, M20 pole socket and speaker pole are provided for sub/satellite use with any of the E Series two-way models. For portable applications it includes attachment points for four optional casters. The subwoofer’s 4-ohm impedance means that a single woofer can be optimally powered by a less expensive amplifier.
Features
- High output, professional quality sound with 800 W continuous power
- E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
- E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers:
- For PLD/CXD visit Amplifier Navigator Software
- For GXD visit the GXD Firmware Updater
- Rugged tour-grade textured paint
- Foam-lined perforated steel grill
- E18SW includes speaker pole
Specifications
| Model | E118sw |
|---|---|
| Configuration | 1 × 18-inch, subwoofer, non-powered |
| Frequency Response (-6 dB) | 37 Hz to 230 Hz |
| Frequency Range (-10 dB) | 32 Hz to 230 Hz |
| Power capacity1: continuous/peak | 800 W / 3200 W |
| Sensitivity | 98 dB, 1 W @ 1 m |
| Coverage Angle | N/A |
| Ouput2 (peak SPL @ 1 m) | 133 dB |
|
Drivers LF HF |
457 mm (18 in) driver with 102 mm (4 in) voice coil N/A |
| Nominal Impedance | 4Ω |
| Cross-over | Recommended 80 – 120 Hz LPF |
| Input connectors | 2 × NL4, 1 × barrier strip |

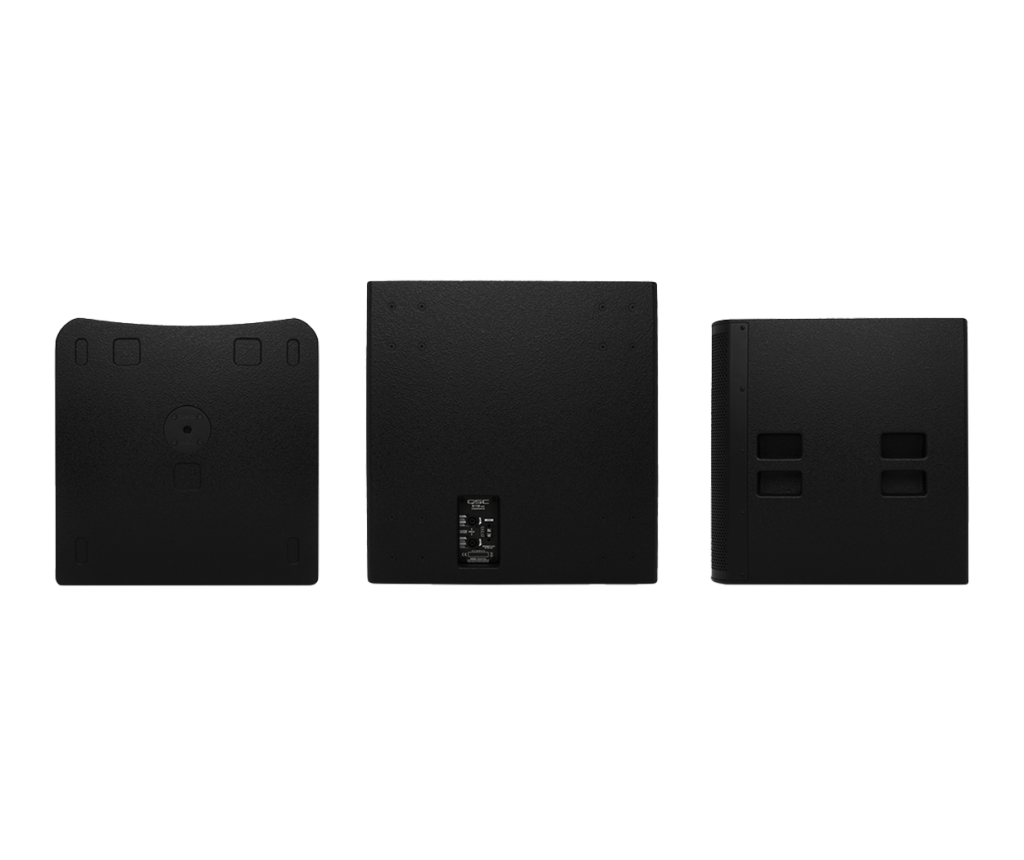

| Enclosure | Rectangular, plywood, black texture paint finish. Four side mounted handles. Rear panel provision for optional 4-inch casters. Perforated, powder-coated steel grille with foam lining. |
| Mounting and suspension | M20 threaded pole-mount socket
610 mm (24 in) pole included |
| Speaker Dimensions (W×H×D) |
590 × 616 × 605 mm 23.2 × 24.2 × 23.8 in |
| Carton Dimensions (W×H×D) |
710 × 690 × 712 mm 28 × 27 × 28 in |
| Net weight | 43 kg / 95 lb |
| Shipping weight | 46.3 kg / 102 lb |
